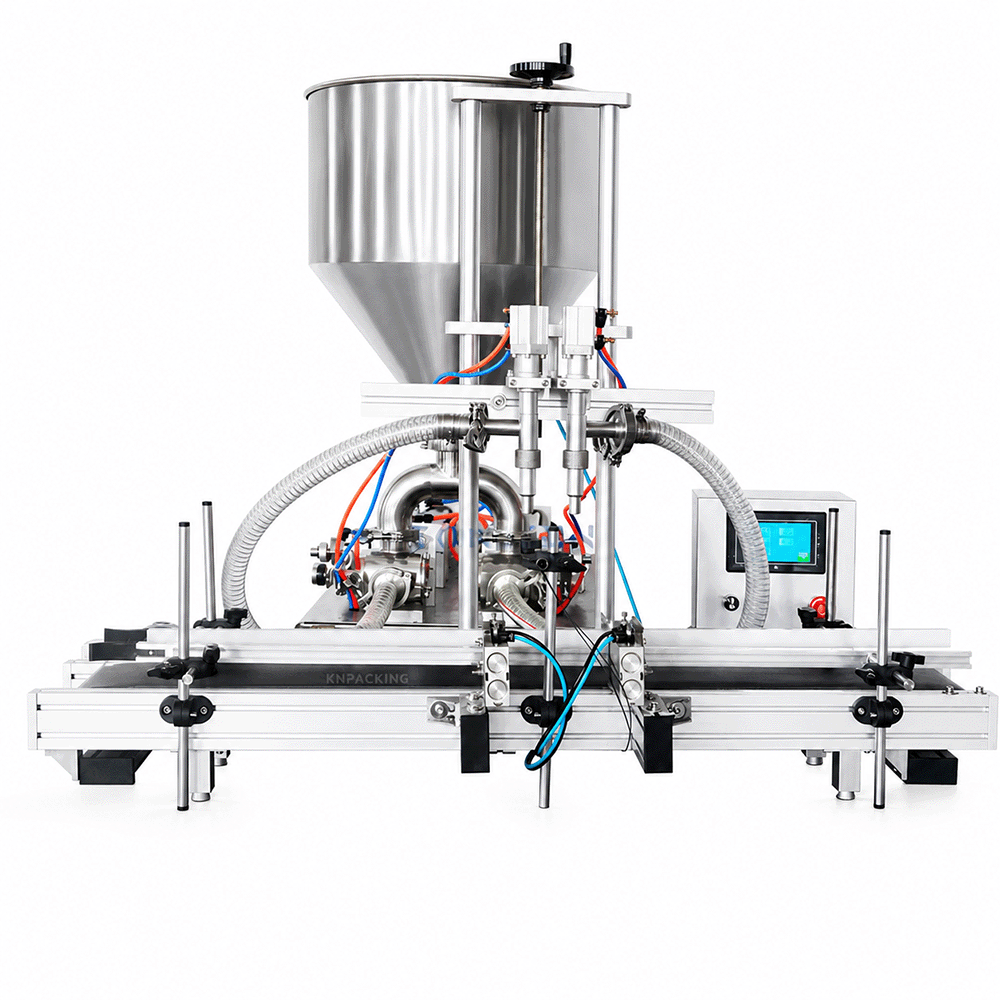

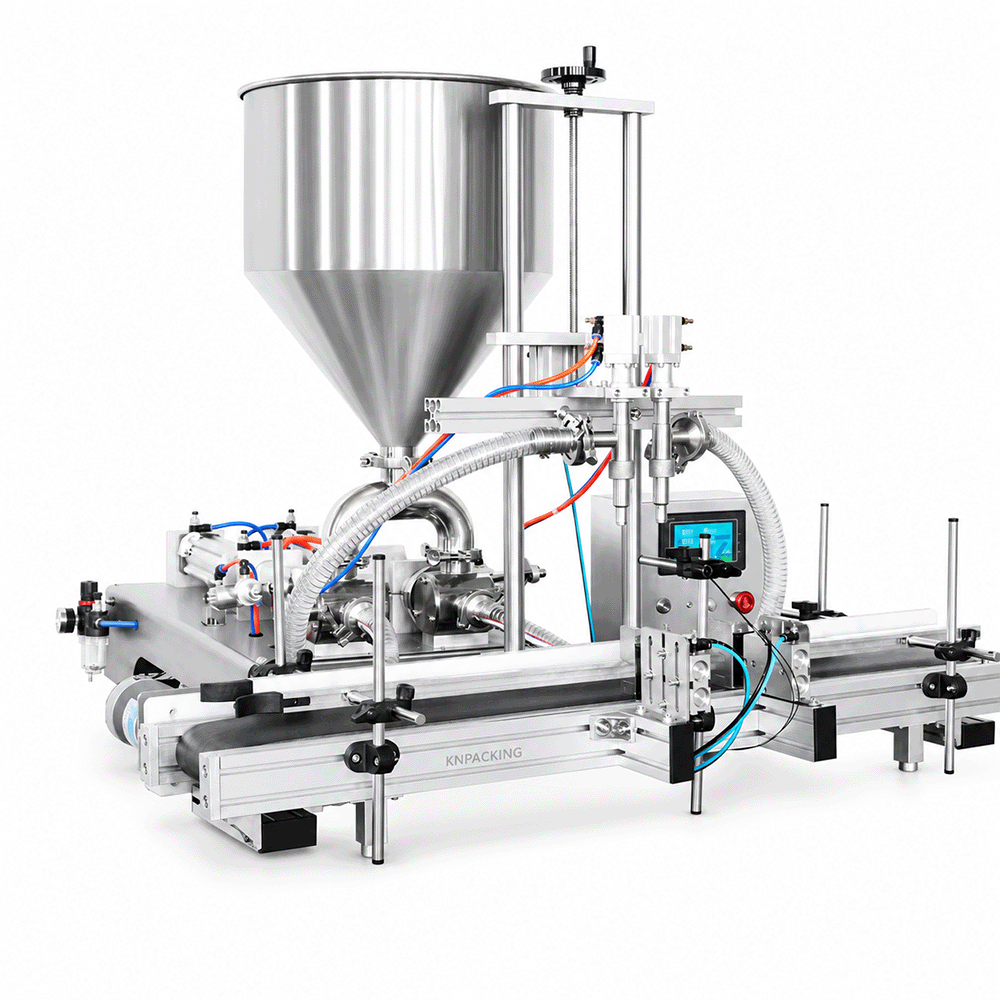

Equipped with piston pumps, this machine is suitable for filling paste and thick liquid like shampoo, engine oil, laundry detergent, and jam. It is a modular design with a filler and a conveyor. And customization is available.
PARAMETER
Machine Model | DTGT2 |
Voltage | 220V/110V 50-60Hz |
Power | 130W |
Filling Range | 10-100/10-200/30-300/50-500/100-1000ml |
Filling Speed | About 800-900bottles/h(300ml ketchup) |
Applicable Bottle Diameter | About 53-100mm |
Filling Accuracy | ≤±1% |
Anti-dripping function | Available |
Conveyor Belt Size | 1020*140mm(L*W) |
Machine Size | 1020*1160*870mm(L*W*H) |

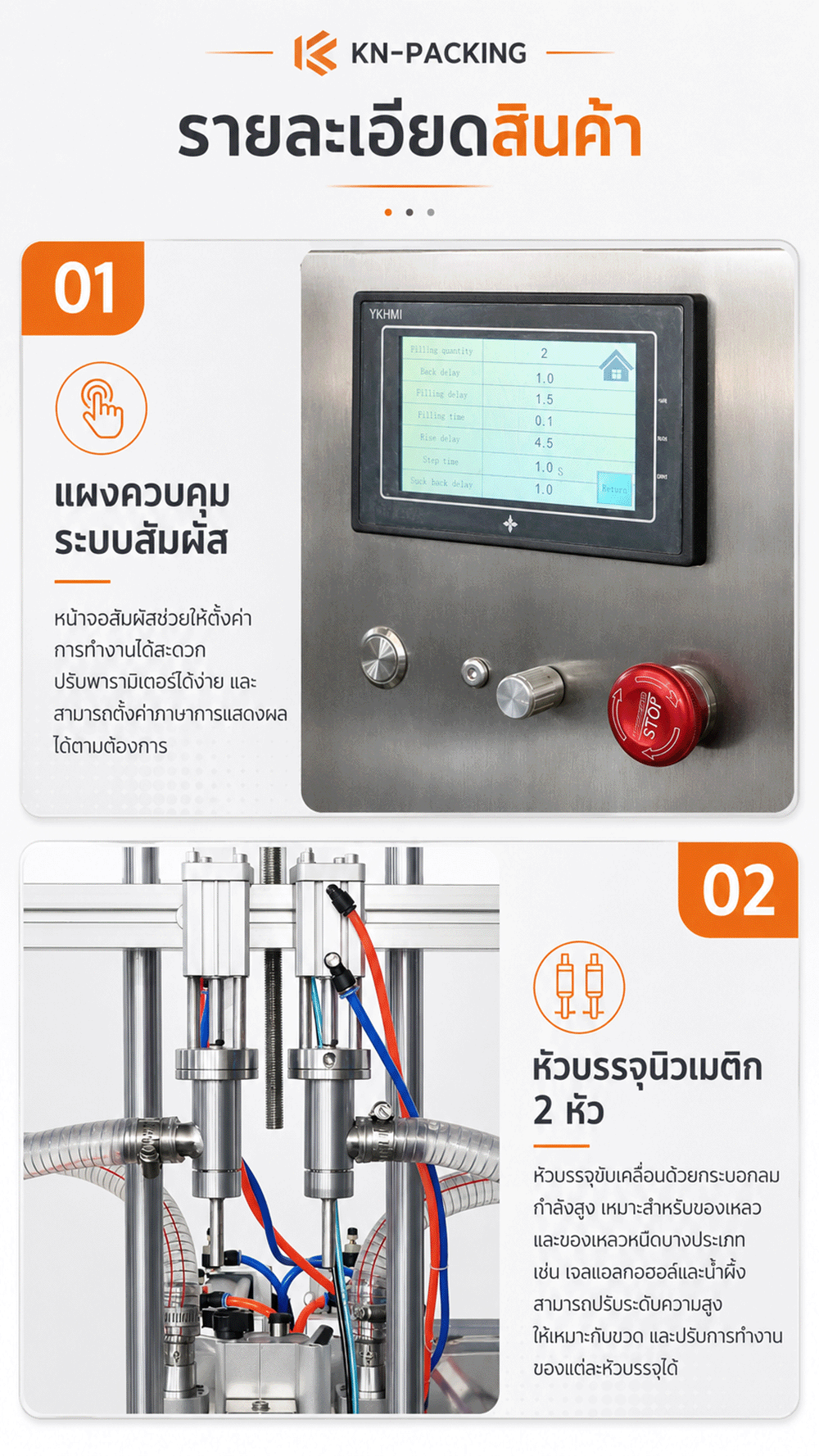

CONTROL PANEL
Through the touch screen panel, it’s easy to set working parameters.
FILLING
Pneumatic, powerful, diving nozzles.

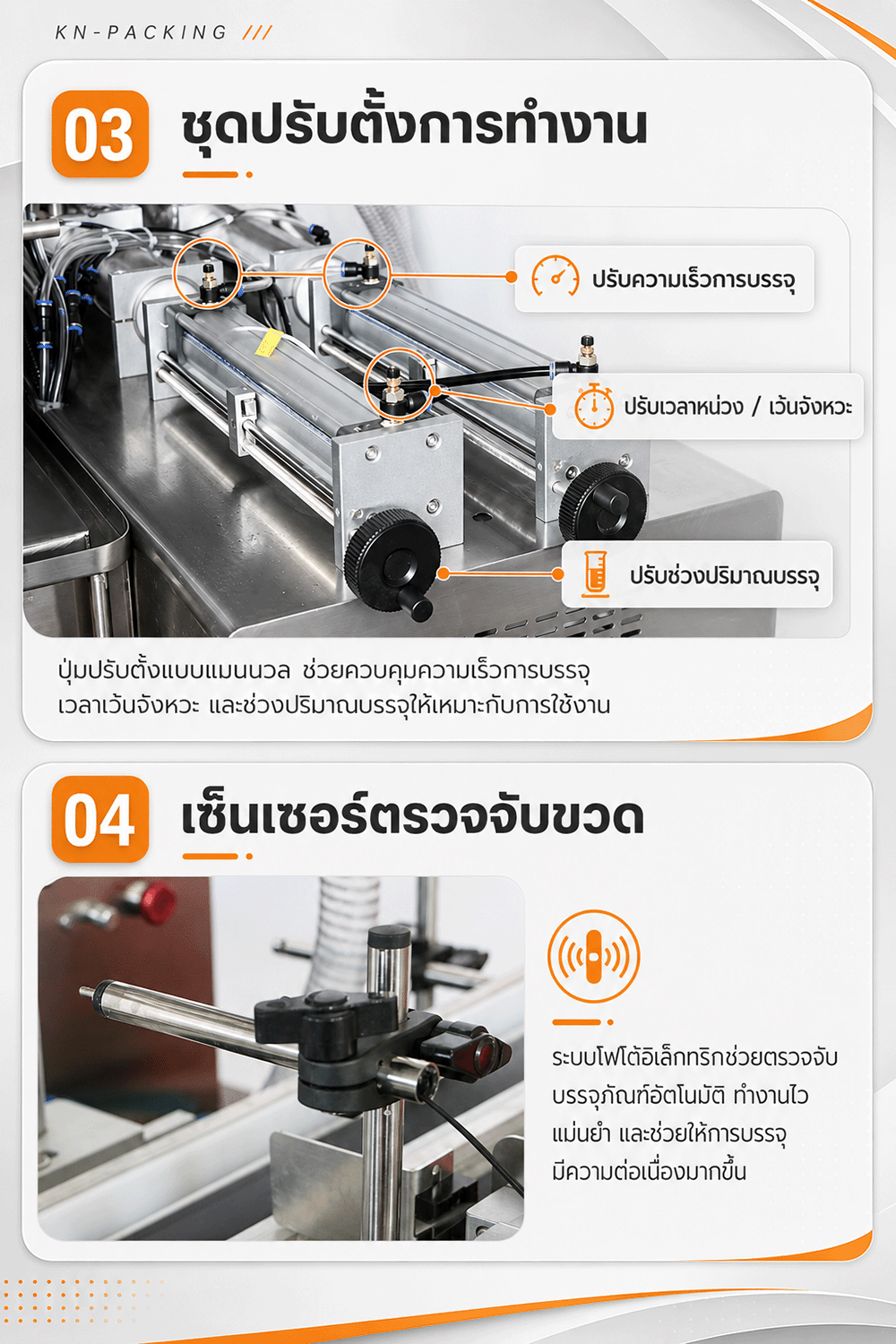

ADJUSTMENT
Filling speed and interval time.
PHOTOELECTRIC EYE
Optical fiber sensing, smart and efficient, auto-detecting.
CONVENYOR
With a high-quality conveyor belt, it can transport bottles steadily. The conveying speed and width of it can be adjusted.
