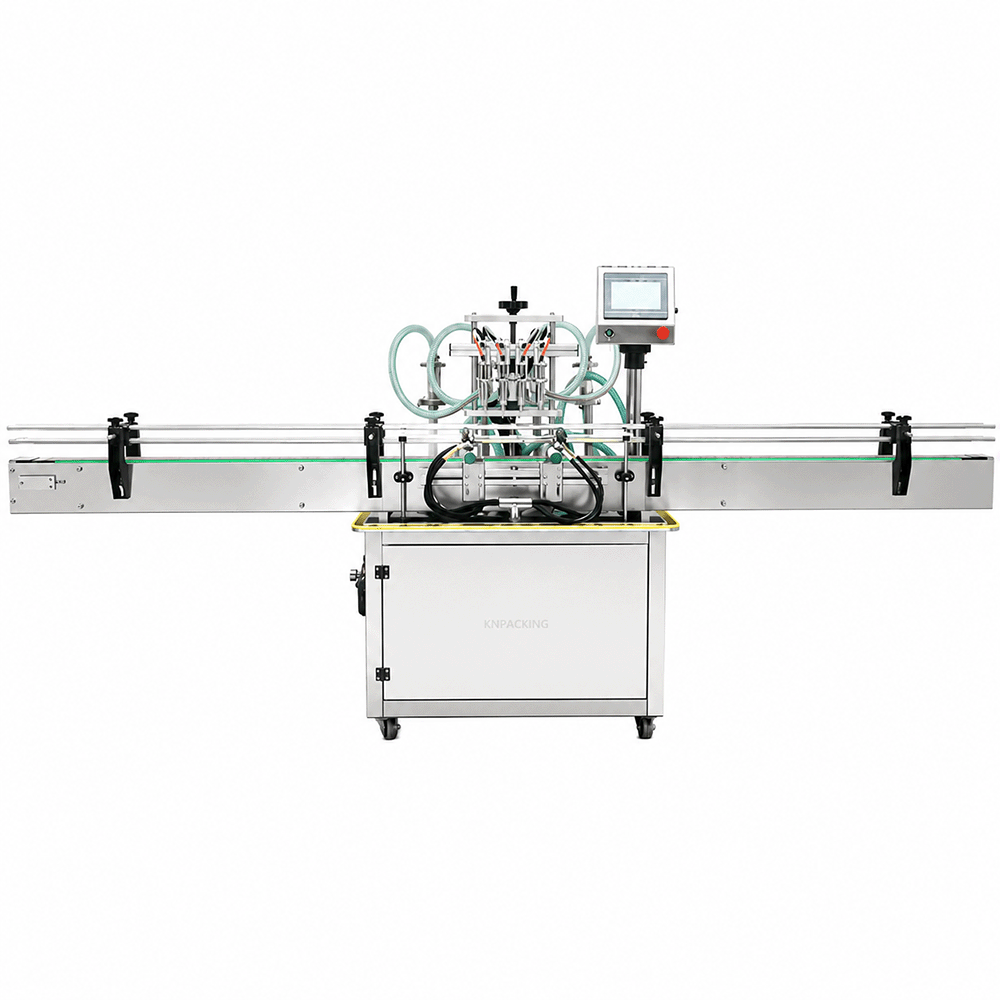

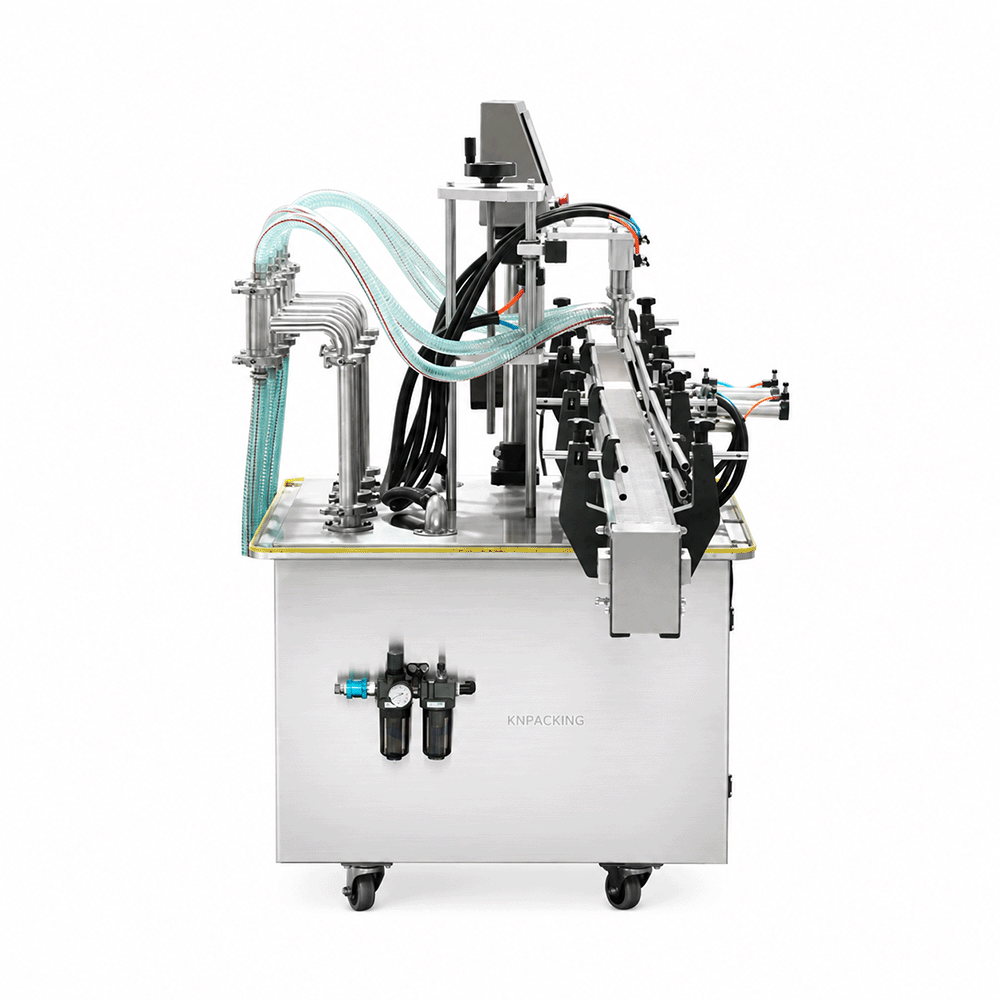

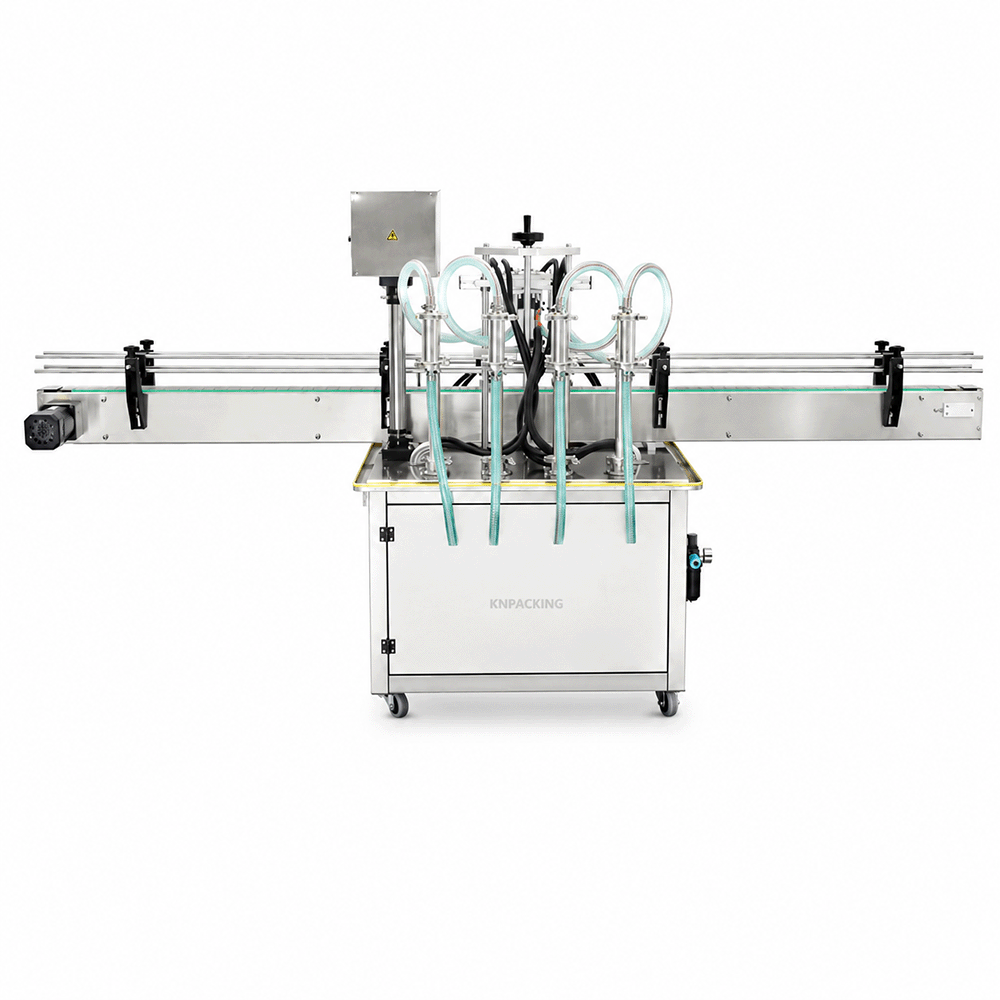

เครื่องบรรจุของเหลวอัตโนมัติ 4 หัวจ่าย เครื่องบรรจุของเหลวลงขวดแบบสายพานแถวตรง อินไลน์ เหมาะสำหรับการบรรจุของเหลว เช่น น้ำดื่ม น้ำปลาร้า น้ำส้ม น้ำผึ้ง ฯลฯ ตัวเครื่องผลิตจากวัสดุสแตนเลส มีสายพานลำเลียงขวดอัตโนมัติใช้ระบบลมนิวเมติก (Pneumatic System) แบบ 4 หัวจ่าย
Model: | YT4T |
Voltage | 110V/220V |
Filling range | 5-100ml,30-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml |
Filling speed | 15-30bottle/min |
Filling precision | Less than 1% |
Air pressure | 0.4-0.6 Mpa |
Weight | 315KG |
Dimension | 210*110*1605CM |
Description:
The filling machine is a microcomputer (PLC) programmable control, photoelectric sensor, pneumatic execution in one of the high-tech filling equipment. This filling machine is specially used for filling food, such as liquor, soy sauce, vinegar, condiment, vegetable oil, syrup, mineral water and other pesticide liquid. Filling measurement accuracy, no drip. Can be applied to various bottle types (including shaped bottles) filling.
Advanced design
The filling machine suit for different specifications of the container filling, can be change filling specifications within a few minutes.
⊙ Replace the filling machine specifications without adding spare parts, just make adjustments to complete.
⊙Users can choose according to their own production capacity to determine the number of filling head.
⊙Touch-type screen, can display the production status, operating procedures, filling methods and so on. Intuitive screen, simple operation, easy maintenance.
⊙Each filling head is provided with a jammed bottle setting, to ensure accurate injection alignment.
Unique filling method
⊙ Designed to use linear group into the bottle, a bottle of the way to expand the filling function, a variety of shapes of containers, can effectively fill in the equipment.
⊙Use of international advanced gas filling valve to ensure that the filling process without dripping, no coveted.
⊙Strong technical team and intelligent software support, can achieve the ideal filling operations.
⊙All operations are completed on the touch-screen.
